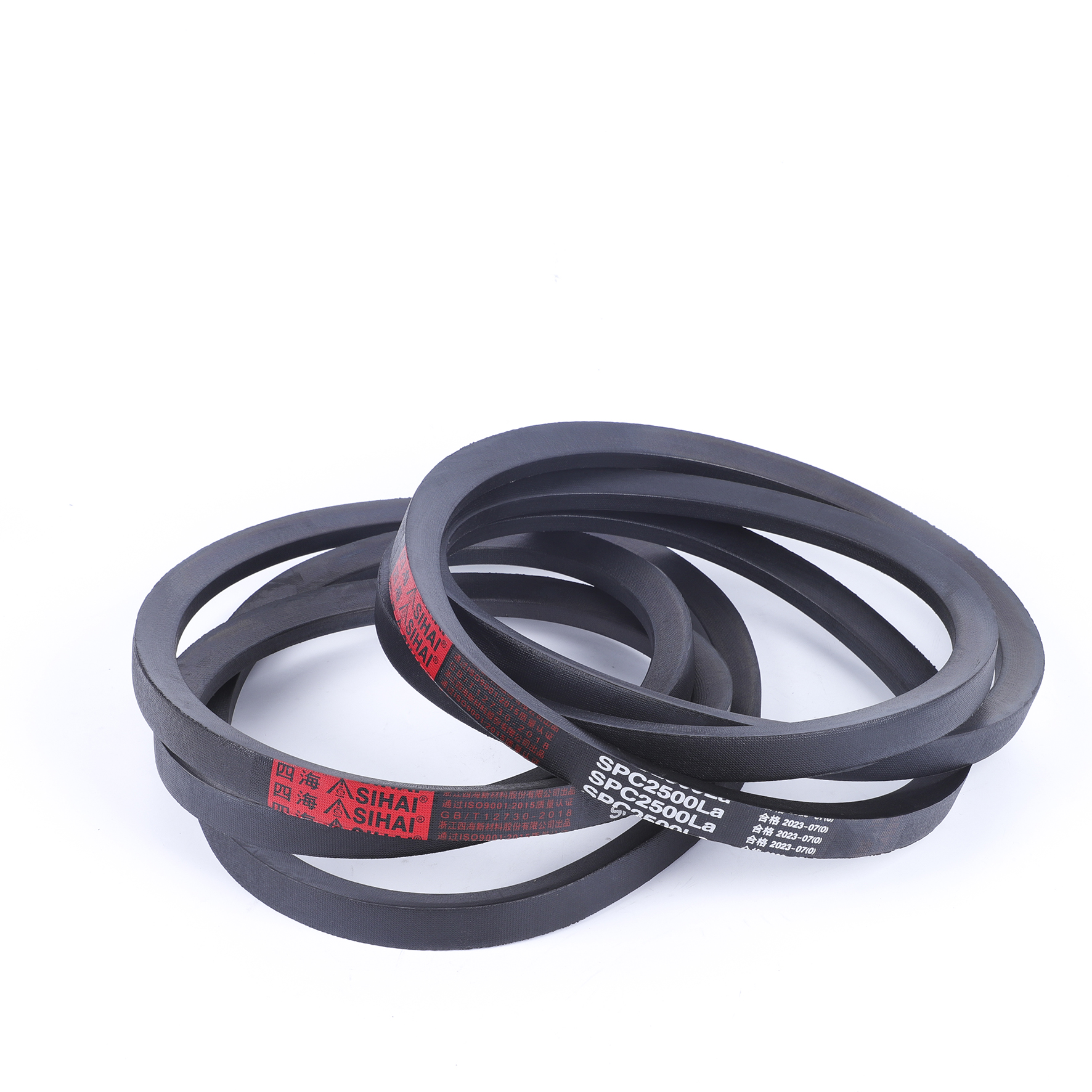

How much can energy-saving V-belts improve industrial equipment efficiency?

The Role of V-Belts in Industrial Energy Efficiency

The significance of v belt systems in power transmission

V-belts form the core of how machines transfer power in countless industrial settings. They move energy from one shaft to another pretty efficiently too, around 95-98% when everything's working just right. The shape of these belts is basically triangular, which means they wedge themselves nicely into those pulley grooves. This setup helps prevent slipping even when dealing with substantial weights. That's why so many factories rely on them for important stuff like conveyor belts, water pumps, and heating systems. About three quarters of manufacturing plants have gone this route for their main operations. Compared to chains that need regular oiling or gears that must be perfectly aligned, V-belts just keep running without much fuss. Most last thousands upon thousands of operating hours before needing replacement. And since they don't demand constant attention, they represent real money savings over time for businesses looking at long term costs.

Energy efficiency of v-belts in industrial applications: a foundational overview

The modern V-belt brings about real energy savings thanks to three main improvements. First off, they use better rubber mixtures that make them easier to bend without losing strength. Then there's the special cogs inside that let heat escape about 40 percent quicker than regular belts. And finally, their raw edges actually stick better to pulleys. If someone picks the right belt for their machine, it can cut down on power usage by somewhere between 12 and maybe even 18 percent when compared with old style belts from years back. This makes a big difference particularly in machines that work at different loads all day long, think centrifugal fans for instance. The new materials used mean the belt keeps working well whether running fast or slow without needing anyone to adjust anything manually throughout the process.

How v belts influence overall equipment efficiency

Just one off-center V-belt can actually bump up motor energy usage around 15%, mostly because of all that extra vibration and the way it wears out components unevenly. On the flip side, keeping these systems properly maintained tends to extend bearing life somewhere in the neighborhood of 20% while cutting down on overall power consumption too. What makes V-belts so useful is their flexibility which lets engineers size drive systems correctly instead of going overboard with bigger motors than needed something that fits right into global energy saving guidelines. Add automatic tensioners to the mix and premium quality V-belts stay efficient even when temperatures fluctuate throughout the day since regular belts usually break down under those same conditions.

Energy Loss in Traditional V-Belt Drives: Causes and Measurement

Common Sources of Energy Loss in Standard V-Belt Systems

Traditional V-belt drives lose 5–10% of transmitted power due to slippage, flexural fatigue, and heat generation. Primary contributors include:

• Belt deformation: Internal friction caused by repeated bending around pulleys
• Inadequate tension: Leads to slippage during peak loads
• Material hysteresis: Energy dissipation in rubber during cyclic stretching

These inefficiencies accumulate over time, particularly in systems lacking regular maintenance.

Impact of Misalignment and Slippage on V-Belt Power Transmission Efficiency

A 3mm misalignment reduces V-belt efficiency by 7% and increases wear rates by 300% (Department of Energy 2024). During sudden load changes, slippage can cause momentary efficiency drops of 15–20%, contributing to cumulative energy losses that account for up to 18% of total drive system consumption in continuous operations.

Quantifying Inefficiencies: Data from DOE and Industrial Case Studies

The 2024 Industrial Energy Audit Report highlights the financial and environmental impact of common V-belt defects in 50-horsepower motor systems operating 6,000 hours annually:

These figures underscore how minor mechanical issues scale into substantial operational costs.

Reduction of Energy Loss Through Proper V-Belt Maintenance: Real-World Evidence

An automotive factory in the Midwest managed to save about 31 percent on energy for their heating and cooling systems after putting together a strict maintenance schedule. They started checking belt tensions every week with a tolerance range of plus or minus 3 percent, used lasers to align equipment within 1 millimeter of perfect, and brought in infrared cameras to spot hot spots before they became problems. These changes meant replacing belts 40% less often than before, and saved around eighteen thousand six hundred dollars each year on energy bills for each production line. So what does this show? That taking good care of machinery isn't just about keeping things running smoothly it actually makes them last longer and work better too.

How Energy-Saving V-Belts Improve System Performance

Design innovations in modern v belt technology for improved efficiency

Contemporary V-belt designs incorporate advanced polymer composites and precision-engineered grooves that minimize bending resistance. Optimized cross-sectional profiles have reduced slip rates by 40% compared to legacy models, while integrated tension indicators enable real-time monitoring. These improvements help industrial drives sustain 98%+ transmission efficiency even under high-torque conditions.

Role of v-belts in reducing industrial energy consumption through reduced friction

V-belts designed for energy savings come with surfaces that create much less friction, cutting down on those annoying parasitic losses by around 18 to 22 percent in most HVAC and pump setups. A recent study from the 2024 Industrial Belt Drive Analysis backs this up. The newer cogged belt designs actually drop operating temps by about 27 degrees Fahrenheit on average, which means these belts keep running efficiently even after long periods of operation. Let's put some numbers into perspective here. Take a standard 500 horsepower motor for example. Just improving efficiency by 1% results in roughly $3,800 saved each year. That kind of money adds up fast when companies look at their bottom line, making low friction tech worth considering for any facility manager watching expenses closely.

Material science advancements behind high-efficiency v belts

The latest ethylene propylene diene monomer or EPDM compounds are showing around 60 percent improvement in heat dissipation compared to regular rubber materials. What's really impressive is they still keep their flexibility even when temperatures drop as low as minus 40 degrees Fahrenheit. When manufacturers reinforce these belts with aramid fibers, something interesting happens. The belts last roughly three times longer than standard ones, and guess what? They don't lose any of their stretchiness either. Combine these two advancements and we see a noticeable drop in what engineers call hysteresis losses. That basically means less energy gets wasted inside the material as it bends and moves. Field tests at actual mining operations have confirmed this leads to about 15% less power consumption for conveyor systems, which makes a big difference over time given how much these machines run day after day.

Benefits of v-belts in improving equipment efficiency under variable loads

V belts designed for variable speed operation keep around 94 percent efficiency when loads range from 30 to 120 percent because they adjust their stiffness dynamically as conditions change. The big advantage here is avoiding those nasty 12 to 18 percent efficiency losses that happen all the time with traditional fixed systems whenever production levels fluctuate up or down. Some actual testing done at various food processing facilities found something pretty interesting too. When they swapped out old equipment for these adaptive V belts, energy consumption dropped by about 14 percent for each unit produced. That means better bottom line results while also cutting down on environmental impact, though some maintenance crews still need time getting used to the different handling requirements compared to standard belts.

Real-World Efficiency Gains: Case Studies of Energy-Saving V-Belt Upgrades

Energy Savings from Upgrading Industrial Belt Drives in Manufacturing Plants

Manufacturers who upgrade old drive systems with new V-belts typically see around 12 to 18 percent better energy efficiency across their conveyor belts and production line equipment. Research from last year looked at nearly 50 different plants and discovered that when they got the belt tension right and aligned everything properly, motors actually worked harder but used less power overall, cutting down load requirements by about 14%. Take one auto factory in Ohio for example. They spent money on these special wedge shaped belts instead of their worn out ones and ended up saving roughly sixty two thousand dollars each year. The company recouped every penny invested back in just under a year because there was less belt slippage and significantly less heat buildup in the system during operation.

Case Analysis: 15% Reduction in Energy Use After V Belt Replacement in HVAC Systems

According to the latest Mechanical Systems Report from 2024, a Canadian manufacturing plant saw its HVAC energy usage drop by around 15% after upgrading their V-belts. When they swapped out those old fashioned belts for newer ones made with special rubber compounds, the fans kept running at just the right speed even when demand fluctuated throughout the day. After installing these new belts, several improvements were noticed. Compressors ran about 9% less time overall, which means less wear and tear on equipment. Maintenance expenses dropped by roughly 22% since there was much less belt dust buildup inside the system. Plus, temperatures stayed more consistent across the facility, helping production lines move faster by approximately 4%. These kinds of upgrades make sense for any factory looking to cut costs while improving efficiency.

ROI and Payback Period for Energy-Saving V Belt Installations

Industrial operators typically get their money back on upgrades somewhere between 8 and 14 months after installation when looking at both energy savings and lower maintenance bills. Take for example this textile mill that spent around $28k on equipment improvements and saw about $3,400 saved each month afterward. Meanwhile across town, a paper manufacturing facility cut down on those pesky belt replacements by nearly 20% just by fixing up their cogeneration setup. Looking at numbers over several years shows something interesting too. Plants that properly maintain their V-belt drive systems end up spending roughly 31% less overall throughout the life of the equipment compared to facilities where belts just sit there until they break down completely.

Optimizing V-Belt Systems for Maximum Energy Savings

Energy Savings from Belt Drive Systems Through Proper Tensioning and Alignment

Getting belt tension right makes a difference for energy efficiency in industrial settings, accounting for around 3 to 5 percent of overall savings. When belts are too loose they tend to slip and create unnecessary heat problems. On the flip side, when they're too tight it actually wears down bearings and motors faster than normal. The good news is laser alignment tech has gotten pretty advanced these days, capable of hitting sub 0.1 mm accuracy levels which cuts down on those pesky side loads that mess with performance. Some research from last year looked at food processing facilities and found that properly maintained V-belt systems cut daily energy usage by about 12.7 kilowatt hours per drive. That translates into roughly $1,850 saved each year on operating costs alone for individual units.

Maintenance Protocols to Sustain the Energy Efficiency of V-Belts in Industrial Applications

When systems go without proper care, they tend to lose around 15 to maybe even 20 percent efficiency within just 18 months. That's why regular maintenance matters so much. Monthly checks on belt tension with those sonic meters are a must, plus looking at pulleys every three months for signs of wear. Don't wait until belts show glazing or cracks before replacing them either. Dust accumulation can be just as damaging too. Take this cement facility for instance - after cleaning off all that limestone dust that had built up on their conveyor belts, they saw their motor workload drop by nearly 9%. Plants that stick with these basic maintenance routines typically find their belts last about 30% longer while cutting down on energy expenses by roughly 8%. These savings add up over time, making good maintenance practices well worth the investment.

Integration of Monitoring Technologies for Real-Time V-Belt Performance Tracking

The latest wireless IoT sensors are giving plant managers instant access to information about belt tension levels, operating temperatures, and vibration patterns across production lines. A major car parts maker recently connected these smart sensors directly to their programmable logic controllers (PLCs), allowing automatic adjustments to torque settings whenever there's a sudden change in workload. This setup cut down those annoying energy surges by around 22% just in their stamping operations alone. The really interesting part comes with predictive maintenance systems that spot misalignments long before anything breaks down. These platforms typically catch issues several weeks ahead of schedule, which helps maintain about 2 to 3 percent better system efficiency every year. What this means for maintenance teams is they no longer need to follow rigid schedules but can instead respond based on actual equipment conditions when problems actually start developing.

FAQ Section

What are the main advantages of using V-belts in industrial settings?

V-belts are efficient in transferring power, with efficiency rates between 95-98%. They help reduce maintenance costs and are durable, making them suitable for sustained industrial use.

How do modern V-belt designs contribute to energy efficiency?

Modern V-belt designs use advanced materials and innovative features like cogs and raw edges, leading to reduced power usage (12-18%) and improved heat dissipation.

What are the common causes of energy loss in traditional V-belt systems?

Energy loss typically occurs due to belt deformation, inadequate tension, and material hysteresis, leading to power transmission inefficiencies.

How can proper maintenance reduce energy loss in V-belt systems?

Proper maintenance, such as regular tension checks and using alignment technologies, can decrease energy consumption by preventing inefficiencies caused by misalignments and wear.

What are the benefits of using energy-saving V-belts?

Energy-saving V-belts reduce friction, extend the lifecycle of components, and improve system efficiency, leading to significant cost savings and reduced environmental impact.
